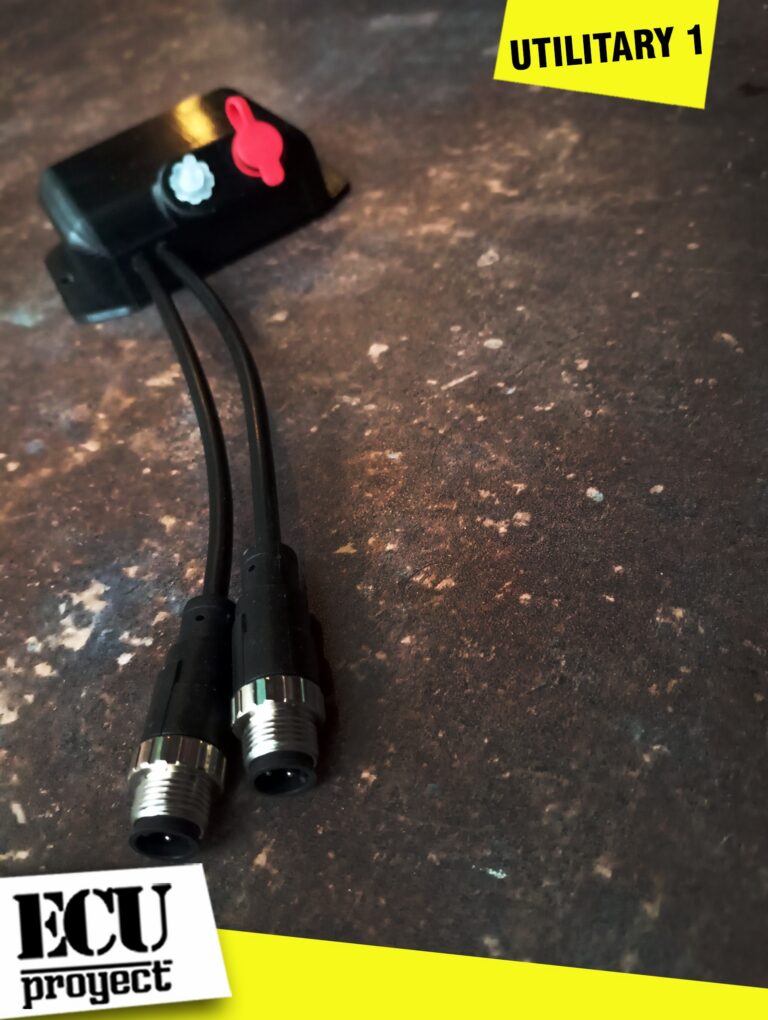

ProyectECU Utility1 2.0

The new out-of-this-world module for proyectos that ProyectECU has for you

Ask your Workshop/Tuner for Features and Prices!!

CarbuMATE

Utility1 2.0

  • Utility1 2.0
    • allows you to take control of the electronic ignition
    • It allows you to take control of the injectors (1 bank only)
    • Add advance time map
    • cold advance
    • Use a modern dry coil (or one with a distributor as well)
    • Launch control with antilag (by assigning an available input as launch)
    • For those out-of-this-world proyectos!!

    (visit the Downloads section for manuals, guides and more info!)

Where to buy

List of Inputs and Outputs
- 12V
- GND
- 5V
- IGN1
- INJ1
- O2
- VR+
- VR-
- TPS
- CLT
- IAT

-16×16 3D ignition maps, with base of either TPS (Alpha-N) or MAP (Speed Density)
-Idle Advance control
-1 Injection bank (for HIGH Z injectors up to 4 (or up to 8 adding an extra mosfet))
-Cranking specific dwell timing and advance
-General logging through TunerStudio
-High speed tooth logging
-TPS calibration through TunerStudio
-Sensor calibration through TunerStudio (Coolant)
-1 input reassignable
-Over dwell and over duty protection
-Battery voltage compensation for dwell
-Modular wheel decoder support.
-Launch control
